Système d'équilibrage actif intelligent pour véhicules lourds

Enerkey Smart BMS 16S-24S 200A with 1A-8A Active Balancing CAN RS485 for Lifepo4/Li-ion/LTO/SIB RV Energy Storage

Toutes Les Catégories

Machine de réparation de batterie

BMS de stockage d'énergie pour véhicules roulants

BMS de stockage des véhicules électriques

BMS pour véhicules électriques

BMS pour chariot élévateur électrique

Système d'équilibrage actif intelligent pour véhicules lourds

Contactez-nous

Mrs. Kiwi Xiao

kiwi@enerkey.cn

+8615387469240

Enerkey-Tech

Contact maintenant

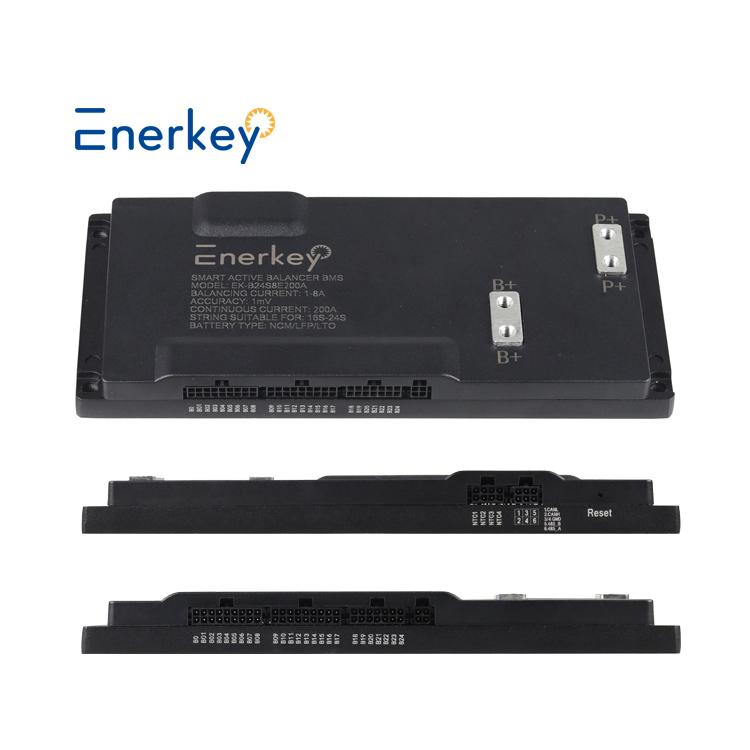

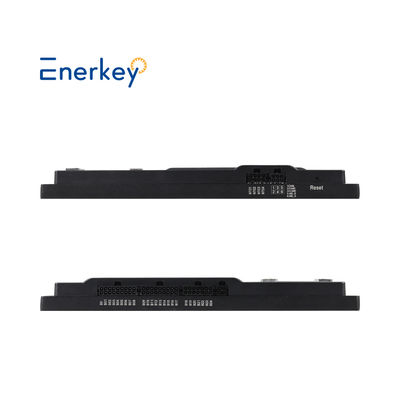

Enerkey Smart BMS 16S-24S 200A with 1A-8A Active Balancing CAN RS485 for Lifepo4/Li-ion/LTO/SIB RV Energy Storage

Nom De Marque:	Enerkey
Numéro De Modèle:	EK-B24S8E200A
Nombre De Pièces:	10 pièces
Prix:	$119.5-$126.5
Détails De L'emballage:	Boîte de papier solide + mousse EVA
Conditions De Paiement:	L/C, D/A, D/P, T/T, Western Union, MoneyGram

Informations détaillées

Description de produit

Informations détaillées

Lieu d'origine:

Shenzhen, Chine

Certification:

ISO9001/CE/ROHS

Nom du produit:

16s-24s 200A Équilibreur Actif Intelligent BMS

Courant de balance actif:

1A-8A (Réglable)

Application du projet:

Voiture partagée,jouets électriques,voiture électrique/vélo électrique,alimentation extérieure

Courant de charge/décharge continu:

Les caractéristiques de l'appareil doivent être définies conformément à l'annexe 5 du présent règlem

Type de batterie:

Les piles au lithium/Lifepo4/Lto/SIB

Type:

Tableau BMS équilibré actif

Port de communication:

Le système d'aérodrome doit être équipé d'un système d'aérodrome.

Précision de la tension équilibrée:

1mV ((réglable)

Base Material:

AL/PC/FR-4/HASL

cordes de batterie:

Les États membres doivent veiller à ce que les informations fournies par les autorités compétentes s

Taille du produit:

L237 x l107 x Épaisseur 24,5 (mm)

Poids avec emballage:

1.5 kg

Capacité d'approvisionnement:

10000 pièces par jour

Description de produit

Enerkey Smart BMS 16S-24S 200A with 1A-8A Active Balancing CAN RS485 for Lifepo4/Li-ion/LTO/SIB RV Energy Storage

Product Description

Smart active balance BMS also has the following characteristics:

Dynamic Balancing: The BMS can monitor the voltage of individual cells within the battery pack and, through controlling the flow of current, achieve a balance in charge and discharge among the battery cells, ensuring consistent state across the entire battery pack.

Real-time Monitoring: The BMS can continuously monitor parameters such as voltage, current, temperature, etc., in real-time to promptly detect and address potential issues with the battery, such as overcharging, over-discharging, or excessive temperatures.

Intelligent Management: BMS is often equipped with intelligent algorithms and control strategies, capable of adaptive management based on the operational state of the battery pack and environmental conditions, enhancing overall performance and lifespan.

Communication Capability: BMS typically includes communication modules allowing data exchange with other systems or devices, enabling remote monitoring and control.

Fault Diagnosis: The BMS can diagnose faults within the battery pack and provide corresponding alarms or protective measures to prevent damage or safety risks.

Energy Efficiency and Emission Reduction: Through efficient battery management and optimization, BMS can effectively improve energy utilization, reduce energy consumption, and contribute to energy efficiency and emission reduction goals.

Scalability: BMS systems are designed to be scalable, accommodating different scales and types of battery packs to meet the requirements of diverse application scenarios.

In summary, an intelligent active balancing BMS, through advanced monitoring, control, and management technologies, enhances the performance, safety, and reliability of battery packs. These characteristics make BMS widely applicable in areas such as electric vehicles and energy storage systems.

Enerkey Smart BMS 16S-24S 200A with 1A-8A Active Balancing CAN RS485 for Lifepo4/Li-ion/LTO/SIB RV Energy Storage 0

Enerkey Smart BMS 16S-24S 200A with 1A-8A Active Balancing CAN RS485 for Lifepo4/Li-ion/LTO/SIB RV Energy Storage 1

Enerkey Smart BMS 16S-24S 200A with 1A-8A Active Balancing CAN RS485 for Lifepo4/Li-ion/LTO/SIB RV Energy Storage 2

Enerkey Smart BMS 16S-24S 200A with 1A-8A Active Balancing CAN RS485 for Lifepo4/Li-ion/LTO/SIB RV Energy Storage 3

Enerkey Smart BMS 16S-24S 200A with 1A-8A Active Balancing CAN RS485 for Lifepo4/Li-ion/LTO/SIB RV Energy Storage 4

Enerkey Smart BMS 16S-24S 200A with 1A-8A Active Balancing CAN RS485 for Lifepo4/Li-ion/LTO/SIB RV Energy Storage 5

Enerkey Smart BMS 16S-24S 200A with 1A-8A Active Balancing CAN RS485 for Lifepo4/Li-ion/LTO/SIB RV Energy Storage 6

Enerkey Smart BMS 16S-24S 200A with 1A-8A Active Balancing CAN RS485 for Lifepo4/Li-ion/LTO/SIB RV Energy Storage 7

Enerkey Smart BMS 16S-24S 200A with 1A-8A Active Balancing CAN RS485 for Lifepo4/Li-ion/LTO/SIB RV Energy Storage 8

Enerkey Smart BMS 16S-24S 200A with 1A-8A Active Balancing CAN RS485 for Lifepo4/Li-ion/LTO/SIB RV Energy Storage 9

Enerkey Smart BMS 16S-24S 200A with 1A-8A Active Balancing CAN RS485 for Lifepo4/Li-ion/LTO/SIB RV Energy Storage 10

Enerkey Smart BMS 16S-24S 200A with 1A-8A Active Balancing CAN RS485 for Lifepo4/Li-ion/LTO/SIB RV Energy Storage 11

Techinal Parameters

Item	Smart Active Balancer BMS
Product Model	EK-B24S8E200A	EK-B24S8E250A	EK-B24S8E300A
Product size	L237 x W107 x T24.5(mm)
Product weight	1500g
Single cell voltage collection range	1.5V～4.5V
Communication ports	CAN/485
Outlet mode	Same ports
Product material	Aluminum alloy, PC plastic, FR-4/lead-free tin-spraying
Battery protection parameters
Continuous discharge current	120A Default 15A～200A adjustable	120A Default 15A～250A adjustable		120A Default 15A～300A adjustable
Continuous charge current	200A Default 15A～200A adjustable	250A Default 15A～250A adjustable		300A Default 15A～300A adjustable
Battery type	NCM	LFP		LTO
Battery string number	16S～24S	16S～24S		20S～24S
Single cell overcharge protection value	4.200V	3.650V		2.700V
Single cell overcharge recovery value	4.000V	3.450V		2.400V
Single cell undervoltage protection value	2.900V	2.600V		1.600V
Single cell undervoltage recovery value	3.100V	2.900V		1.800V
Equalization parameters
Active balancing current	1A～8A(adjustable)
Balanced voltage accuracy	1mV(adjustable)
Start balancing voltage difference value	0.001V～5.000V(adjustable)
Stop balancing voltage difference value	0.001V～5.000V(adjustable)
Balanced start voltage value	1.500V～4.500V(adjustable)
Balanced stop voltage value	1.500V～4.500V(adjustable)
Temperature protection parameters
Charge over-temperature protection	Default 60℃/30℃～80℃ (adjustable)
Charge over-temperature recovery	Default 50℃/30℃～80℃ (adjustable)
Charge low-temperature protection	Default -2℃/-40℃～20℃(adjustable)
Charge low-temperature recovery	Default 2℃/-40℃～20℃(adjustable)
Discharge over-temperature protection	Default 60℃/30℃～80℃(adjustable)
Discharge over-temperature recovery	Default 50℃/30℃～80℃(adjustable)
Discharge low-temperature protection	Default -10℃/-40℃～20℃(adjustable)
Discharge low-temperature recovery	Default -5℃/-40℃～20℃(adjustable)

Packing List

Enerkey Smart BMS 16S-24S 200A with 1A-8A Active Balancing CAN RS485 for Lifepo4/Li-ion/LTO/SIB RV Energy Storage 12

Wire Diagram

Precautions:

①. Installing the protection equalization board requires a certain amount of electronic knowledge.

②. Welding the cable: The first cable (black line) is connected to the total negative pole of the battery, the second cable (red line) is connected to the positive pole of the first battery string, and the third cable (red line) is connected to the positive pole of the second battery string... and so on, connect all the cables;

③. Detect the cable: After connecting the cable, measure the voltage between two adjacent cables from the head of the cable to confirm that there is no problem of wrong connection or missing connection in the welding sequence of the cable.

④. Connect the B+ line of the protection board to the total positive pole of the battery, and then connect the sampling cable plug to the protection board. After activating the protection board, confirm that the voltage before the board (battery voltage B+.B-) and the voltage after the board (P+.P-) are consistent.

FAQ

Q1. Why did we choose you?

* We can provide you with efficient after-sales service, with more than 10 years of strong technical support.

* Products have passed FCC, CE, ROHS and other international standards certification.

* We can provide you with factory price, Welcome you to visit our factory and production process.

Q2. What is your product range (type)?

*We mainly do battery management systems in the fields of power batteries, energy storage batteries and consumer batteries.

*Mainly used for LFP, Li-ion and LTO and SIB batteries.

Q3: How do I know which kind of material & type my battery is ?

*Please look the battery body, If the normal voltage of your battery shows 3.2V, The battery is LiFePo4.

*If the normal voltage of your battery shows 3.6V or 3.7V, the battery is Li-ion or Lto battery.

Q4. Do you have minimum order requirements?

Can it be customized? What is the lead time for samples and batches?

*Our minimum order quantity is 1 piece, ODM customization is available.

* 1~3 days delivery of existing samples, 3~10 days delivery of customized samples.

Q5: What if i can't use it?

*Regular products have instructional videos, We can also support online video call guidance from engineers.

Q6. What are your terms of payment?

*We accept wire transfer and cash payment, all negotiable. Payment method :visa, mastercard, T/T, PayPal, APPLE_PAY, GOOGLE_PAY, GC_REAL_TIME_BANK_TRANSFER, RMB

Q7. How do you guarantee the quality?

* All our products are subjected to professional laboratory 100% testing, as well as repeated aging tests.

* Obtained FCC, CE, ROHS and other international standard certification.

* Provide 3 years after-sales warranty service. Free spare units for replace in 3 years.

Q8. How to choose a BMS suitable for our battery?

*Depending on the voltage and current that matches your battery, you can consult our customer service and we will provide it for you equipped with the most suitable battery management system.

Q9. How can i contact you?

*We have 7x24 hours online service, Please leave us a message online.

*You can also contact us by Email, WhatsApp, WeChat, etc(see below). We are so glad to work with you.

If you have any advices or requests, Warmly welcome your consulting.

Mobile & WhatsApp & Wechat: +86 15387469240; Email: kiwi@enerkey.cn
